New! 15" Touch Screen
Uniwell DX-910
DX-Series Brochure
The DX-910 brings you the highest quality of ROM-based
touch screen solutions that you have ever wished for.
15 inch touch screen LCD display, more connectivity with variety of interfaces,
and top performance of the software programs with expanded memory will perfectly
fit into the current complexity of hospitality and quick service operations.
Through the spirit of customer-friendly mechanism and operation, your business
management will never be more ideal and successful without the Uniwell DX-910
DX-910 Remarks
- 15" color TFT dual backlight touch screen display
- Round or normal edge button selectable
|
|
Round edge button |
Normal edge button |

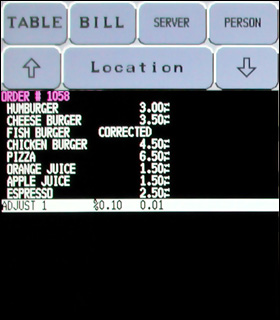

- Large or normal font selectable
|
|
Large font |
Normal font |
- Table Plan for table/room management (can be linked
to Customer Invoice)
- Customer Invoice for issuing periodical invoice with
customer's information printed
- Uninet(Ethernet) with 10Mbps access for rapid
report/data polling, program update and data transfer between PC, kitchen
printers and other ePOS terminals in a network.
- TCP/IP protocol and FTP functions
- Time and Attendance, Labor Cost
- 255 Mix and Match Categories
- PS/2 keyboard attachable
- Card Reader (option)
- iButton (option) for quick clerk sign on
- Pole Display (option)
- Screen Saver

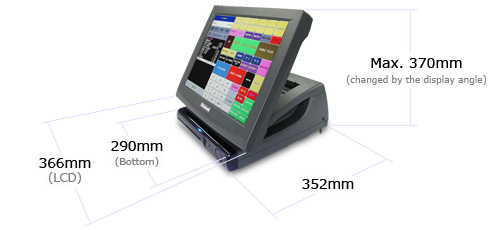

- Compact size :
(L) |
352mm |
(W) |
366mm for LCD, 290mm for bottom |
(H) |
370mm (changed by the display angle) |
|
Interfaces
Standard Port
|
Channel |
Cable |
For |
UNINET |
ETHERNET |
High Speed IRC
IRC kitchen printer server
Local receipt server
FTP comm. with PC (Tensai2000, PLM 2000)
IRC report, flash ROM update, program maintenance
UDP data streaming with PC
Journal data / EJF data monitoring and analysis
|
A |
RS485 |
IRC : max. 32 terminals
Receipt/Kitchen printer (max. 8)
Slip printer (max. 8)
|
B |
RS233C |
PLM 2000, Tensai2000 (PC batch comm, PC-IRC
comm, modem, hotel PMS, loyalty, etc.) or one of the devices as ch-C |
C |
RS233C |
One of:
- Local receipt printer
- Local slip printer (PC printer)
- Scanner
- Scale
- Journal data transfer
- Remote operation device
- Cashless devices
|
D |
RS233C |
Same as ch-C
|
Drawer 1 & 2 |
RJ11 |
1st & 2nd Drawers |
Keyboard |
PS/2 |
PC Keyboard |
|
|
Optional Port
|
Channel |
Cable |
For |
E |
RS232C |
Same as ch-C |
F |
RS232C |
Same as ch-C |
|
|
|
