Uniwell DX-895
DX-895 Brochure
DX-895 Remarks
- 10.4" color TFT dual backlight touch screen display
- Display angle adjustable
- Front Control Panel LED light
- Table Plan for table/room management (can be linked to
Customer Invoice)
- Customer Invoice for issuing periodical invoice with
customer's information printed
- Uninet(Ethernet) with 10Mbps access for rapid report/data
polling, program update and data transfer between PC, kitchen printers and
other ePOS terminals in a network.
- TCP/IP protocol and FTP functions
- Card Reader (option)
- iButton (option) for quick clerk sign on

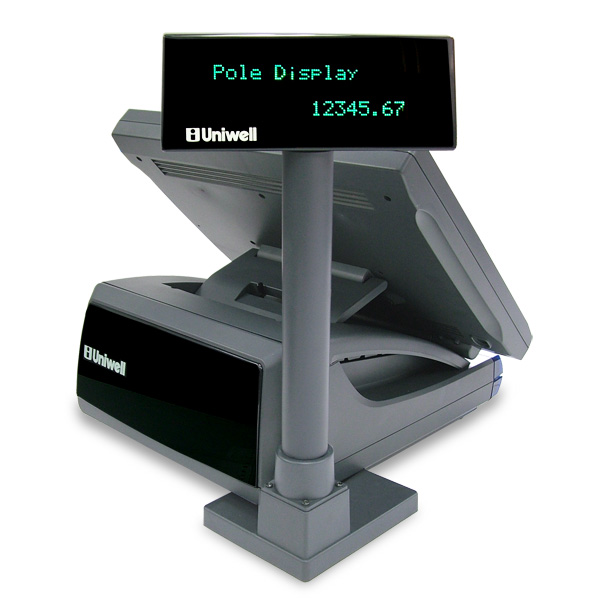

- Pole Display (option)
- Screen Saver
- Compact size :
(L) |
352mm |
(W) |
300mm |
(H) |
207 - 302.8 (depends on the display angle) |
Interfaces
Standard Port
|
Channel |
Cable |
For |
UNINET |
ETHERNET |
High Speed IRC [SF-45.C=YES]
IRC kitchen printer server
Local receipt server
FTP comm. with PC (Tensai2000, PLM 2000)
IRC report, flash ROM update, program maintenance
UDP data streaming with PC
Journal data / EJF data monitoring and analysis
|
A |
RS485 |
IRC : max. 32 terminals [SF-45.C=NO]
Receipt/Kitchen printer (max. 8)
Slip printer (max. 8)
|
B |
RS232 |
PLM 2000, Tensai2000 (PC batch comm, PC-IRC
comm, modem, hotel PMS, loyalty, etc.) or one of the devices as ch-C |
C |
RS232 |
One of:
- Local receipt printer
- Local slip printer (PC printer)
- Scanner
- Scale
- Journal data transfer
- Remote operation device
- Cashless devices
|
D |
RS232 |
Same as ch-C
|
Drawer 1 & 2 |
RJ11 |
1st & 2nd Drawers |
|
|
Optional Port
|
Channel |
Cable |
For |
E |
RS232 |
Same as ch-C |
F |
RS232 |
Same as ch-C |
|
|
