New! 15" Touch Screen

Uniwell iX-15New!

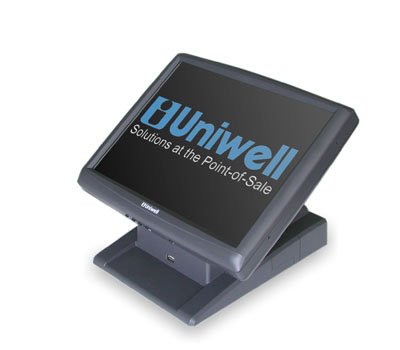

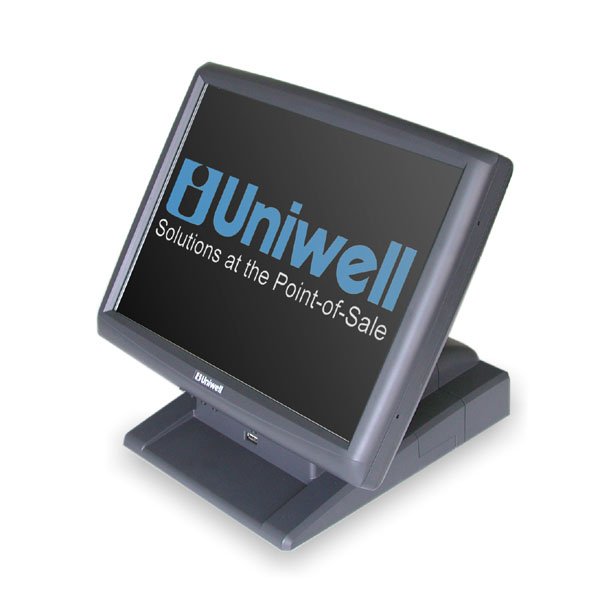

iX-15 is an All in One PC POS with 15" high brightness TFT touch screen. It has a stylish design taking over Uniwell touch screen front shape and compact cabinet that saves the valuable counter space. The total fan-less designed system (VIA 1.0GHz and Intel 1.0GHz) and IP43 rated cabinet can operate in all kinds of harsh environments from hospitality to retail industry. It will fully satisfy the requirements of your needs for touch screen POS.


iX-15 Series Brochure







Features

Noise-free


The fan-less, noise free design of the iX-15 is ideal for noise-intolerant environment such as hospitals, museum, and SPA resorts, etc. (VIA 1.0GHz and Intel 1.0GHz)

Low power consumption


iX-15 design of the device is embedded with a unique chip set and CPU renders power saving function.

Saving cost of ownership


Modular design provides the owner with the following benefits: (a) cost effectiveness, (b) customization flexibility, and (c) easy maintenance.

Compact size/ Aesthetic design


This elegant, economic POS system features a sleek, compact design base that saves counter space and adds appeal to the service environment.

Dust/water-proof


iX-15 series features a highly durable, rigorously tested design that is reliable and dependable in rugged environments.

IP43 Standard


iX-15 can operate safely in all kinds of harsh environments including gas stations, pubs, kitchens, and other settings. With the fan-less design, dust accumulation at vents is minimal.

WEPOS/XPE solution


Solution is recommended to be bundled with embedded solution for high performance and other added values.

Environment protection


Environmentally friendly, RoHS compliant product.

Higher stability


The iX-15 has a longer overall system MTBF (Mean Time Between Failures) to provide a higher stability during operation.

Other Features

  • External secondary LCD Display for advertisement
  • USB 2.0 connectors for various USB devices
  • The modular design optional peripherals, FIMSK, can mix and match specifically to suit customer's wish. FIMSK represents five independent modules: Finger print recognition, iButton (Dallas key), Magnetic Stripe Reader (MSR), Smart Card Reader (SCR), and Keyboard.
  • Wall mount capability
  • with all FIMSK combined



    Options







    With iButton (Dallas key)

    With Card Reader + iButton (Dallas key)

    With Programmable Keyboard







    iButton (Dallas key)

    Fingerprint Recognition

    Programmable Keyboard







    Magnetic Card Reader

    Smart Card Reader

    Customer Display









    12" secondary LCD Display

    VESA version for pole/wall mount







    Specifications



    CPU

    VIA Eden 1.0GHz ULV (Fan-less)

    Intel Celeron Mobile 1.0GHz ULV(Fan-less)/1.5GHz

    Main Memory

    Standard 512MB, maximum 1GB (1 x 200 Pin DDR2-400/533)

    Standard 512MB, maximum 2GB (2 x 200 Pin DDR-200/266)

    LCD Panel

    15" High Brightness TFT LCD Panel with LVDS Interface 250 cd/m2

    Operation Angle Adjust

    0 to 75 Operation angle adjust range for Touch Display

    Touch Panel

    15" / 4 Wire Resistive Touch Panel

    System Chip Set

    North Bridge: VIA CN-700
    South Bridge: VIA VT-8237R+

    North Bridge: Intel 852GM
    South Bridge: Intel ICH4

    BIOS

    Award BIOS With Enhanced ACPI 2.0 / PnP / APM / DMI / ESCD / PCI bus 2.1 / On Now / DRAM ECC

    HDD

    1 x 3.5" S-ATA HDD Inside the System.

    1 x 3.5" IDE HDD Inside the System.

    FDD

    None (External USB FDD option)

    CD-ROM

    None (External USB CD-ROM option)

    Compact Flash Card

    1 x Bootable Compact Flash Card Socket (Type I/II, ATA Interface)

    RS-232 Port

    6 x High Speed RS-232 Port, DC 5V / 12V output on pin 9th by jumper selector.
    Each Voltage Output with Poly Switch Protector.
    Arrangement for COM Port: (Maximum 5 X COM Port exposed for POS Peripherals.)
    COM 1: DB-Type 9 Pin male connector on upper I/O Area.
    COM 2: Touch Panel Interface (Inside the System)
    COM 3: DB-Type 9 Pin male connector on upper I/O Area.
    COM 4: DB-Type 9 Pin male connector on lower I/O Area.
    COM 5: RJ-45 Type 8P8C connector on lower I/O Area.
    COM 6: DB-Type 9 Pin male connector on lower I/O Area. (Shared with RJ-11 Cash Drawer Output)

    USB Port

    Totally 7 USB ports (USB 2.0) support Windows 98/2000/XP/WePOS/Linux.
    - 1 standard USB port (Ver. 2.0) located at Front Panel (Bottom Side)
    - 2 standard USB Port (Ver.2.0) on LCD Display (Upper Side)
    - 2 Powered USB Port (12Vx1 / 24Vx1) on Bottom Side.
    - 2 internal USB Port for extension.

    Ethernet Port
    (10/100 Mbs Auto)

    Realtek RTL-8100CL Ethernet Chips on Board (10/100 BaseT)
    ACPI/NT4.0/5.0 (NDIS 5).
    Remote Boot ROM for NT4.0.
    Enable or Disable by BIOS setup.

    Intel PRO 100 Ethernet chip on board (10/100 baseT)
    ACPI/NT4.0/5.0 (NDIS 5).
    PXE Boot ROM Function
    Enable or Disable by BIOS setup.

    AGP 3D Graphics Port

    VIA S3 AGP, Share memory from 16 MB up to 64 MB

    Intel AGP8X graphics core, share memory from 8MB up to 32MB (16MB Default), support DVMT to 64MB

    Dual VGA output (Dual view on North Bridge Chips)
    Supports 3D/2D graphics accelerator
    NT 4.0/5.0, Windows 95/98/2000/XP utility
    APM/ACPI 1.0
    DirectX 9.0, VPE, MPEG2

    Parallel Port

    One LPT port (SPP/EPP/ ECP). IRQ and address selectable by BIOS setup. (connector on rear Panel)

    Enhance PCI IDE

    On board PCI Bus Master IDE1/ 2 support Ultra DMA/33/66/100. (Four device)

    HDD Port on board

    1 x S-ATA HDD Port

    1 x IDE HDD Port

    2nd Analog VGA Output

    1 x DB-Type 15 Pin connector for 2nd Analog VGA Output.

    Thermal Solution

    One Heat-sink for CPU & North Bridge Chip

    Audio Port

    VIA VT1612A AC97 CODEC on board with Line In/ Line Out / MIC In. (Line-Out exposed only)

    ACL 203 or 655 AC97 CODEC on board

    PS/2 Keyboard Port

    PS/2 type

    PS/2 Mouse Port

    PS/2 type

    Operation System

    WIN 3.1/95/98/2000/XP/NT4.0/DOS/OS2 V2.1/SCO XENIX: V2.3.2/SCO UNIX V3.2/NOVELL

    DC Output

    DC 24V 2 Amp output with Hosiden 3 Pin connector for Thermal Receipt Printer.
    DC 12V 2 Amp output for 2nd LCD Display.

    External Power Supply

    DC 24V / 120W Sealed Power Adapter
    Fan-less DC 24V Sealed AT Type External sealed adapter. (UL, CSA, VDE, EMI meets FCC *B*)
    With Active PFC And OLP / OVP / OTP Function

    AC Power Source

    AC 90 to 264V Full Range.

    Power On/Off Control

    System bottom Side ATX Power trigger Switch.

    Operation Temperature

    0 to 40C

    Operation Humidity

    20 to 80%

    Storage Temperature

    -25 to 70C

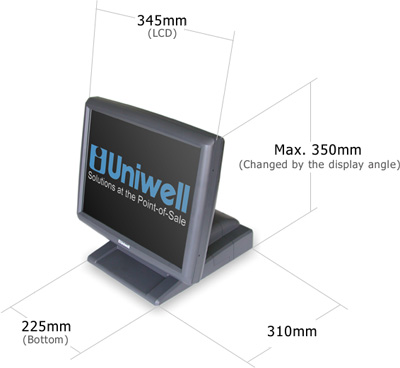

    System Size

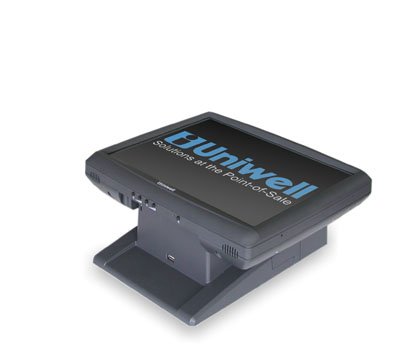

    310MM(L) x 345MM(W) x 350MM(H)--- system to fold minimum height: 160MM

    Weight

    7.3 kg (NET)

    Optional Device

    ISO Trick 1/2/3 Magnet Card Reader
    Smart Card Reader
    IEEE 802.11 a/b/g Wire-Less LAN Module
    Fingerprint Sensor
    32 Key Programmable Keyboard
    iButton (Dallas Key) secret sensor
    2 x 20 VFD Customer Display with RS-232 Interface.
    12" secondary LCD display.
